When a standard gear isn’t the right fit or isn’t available, custom gear manufacturing provides a solution designed specifically for your equipment. Whether you’re replacing a worn component or developing new equipment, a custom gear can improve reliability, performance, and service life.
If you’ve never ordered a custom gear before, the process may seem unfamiliar. From planning and engineering to manufacturing and inspection, each step plays an important role in producing a gear that meets your application’s unique requirements.
In this guide, we’ll walk through each stage of the custom gear manufacturing process so you know what to expect—and what to look for when choosing a manufacturing partner.
When Is Custom Gear Manufacturing Required?
Not every application requires a custom solution. Standard gears work well in many situations, but there are times when a custom-designed component is the only practical option.
Custom gear manufacturing is often the right choice when:
- A replacement gear is no longer available from the original equipment manufacturer (OEM).
- Existing equipment requires a gear with unique dimensions or specifications.
- Operating conditions demand greater durability or performance than a standard gear can provide.
- You’re designing new machinery that requires a specialized gearing solution.
- An existing gear has failed repeatedly and needs to be redesigned for improved reliability.
Rather than adapting a standard component, custom gears are designed around your application’s operating conditions, allowing manufacturers to optimize gear materials, dimensions, and performance.
The Benefits of Custom Industrial Gears
A custom gear can do more than replace a damaged component. When it is engineered around the equipment, operating conditions, and failure history, it may also address the underlying issue that caused the original gear to wear or fail.
Depending on the application, some benefits of custom gearing are:
- A replacement for an obsolete or discontinued gear: A new gear can be manufactured from an existing sample, drawing, or equipment specifications when an OEM replacement is no longer available.
- Improved load distribution: Adjustments to tooth geometry, alignment, or gear quality can help distribute loads more evenly across the tooth surface, reducing localized stress and premature wear.
- Materials and heat treatment suited to the application: Material hardness, case depth, and heat-treatment specifications can be selected to withstand the application’s loads, operating speeds, shock loading, and environmental conditions.
- Adaptation to changed operating requirements: If equipment now handles greater loads, operates at different speeds, or runs more frequently than originally intended, a replacement gear may be redesigned for those conditions.
- Longer, more predictable service life: Correcting issues such as insufficient hardness, inadequate tooth strength, or poor surface contact may reduce recurring gear failures.
- Reduced downtime risk: Reverse engineering an unavailable gear or creating replacement drawings can make future replacements easier to source and help facilities avoid extended outages.
- Compatibility with existing equipment: A custom gear can often be designed to work within the existing gearbox or machine, potentially avoiding the cost and disruption of replacing an entire assembly.
The greatest value comes from identifying why the original gear failed. Simply reproducing a worn or undersized gear may also reproduce its weaknesses. Reviewing the application, operating conditions, lubrication, alignment, and failure pattern allows the replacement to be engineered around the equipment’s actual needs.
Planning for a Custom Gear Manufacturing Project
One of the biggest misconceptions about custom gear manufacturing is that the process begins on the shop floor.
In reality, it starts with understanding the customer’s application.
Successful custom gear manufacturing begins long before machining starts. Manufacturers first gather the information needed to ensure the finished gear meets the application’s performance requirements.
Understanding Your Application
Every application places different demands on a gear. Factors like operating speed, torque, load, environment, and service conditions all influence the design and manufacturing process.
When discussing a new project, a gear manufacturer may ask questions such as:
- What equipment will the gear be used in?
- Is it replacing an existing component or part of a new design?
- What operating conditions will it experience?
- Are there specific performance requirements or industry standards that must be met?
These conversations help determine the most appropriate manufacturing approach before production begins.
Whenever possible, customers should provide engineering drawings or specifications. However, not every project starts with complete documentation.

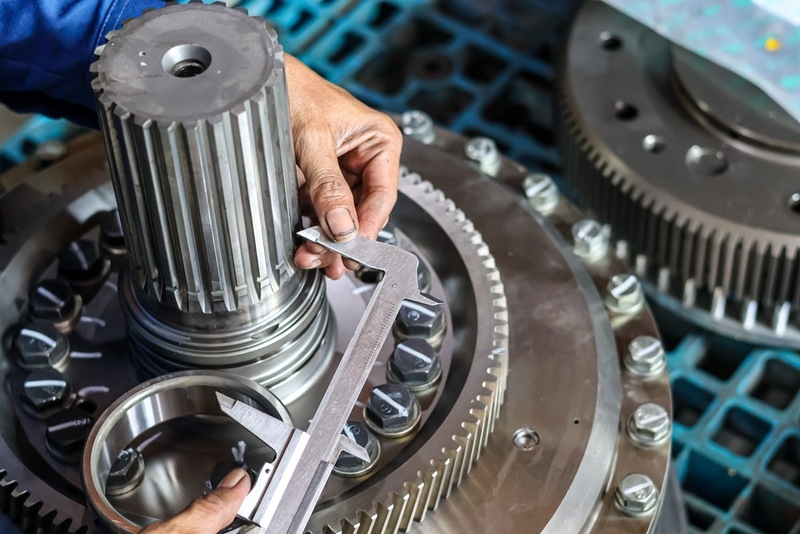

Reverse Engineering Existing Components
In many cases, a worn or damaged gear is the only reference available.
If engineering drawings aren’t available, manufacturers can often recreate a replacement gear through reverse engineering. This process involves carefully evaluating the original gear, identifying its critical dimensions and characteristics, and developing the information needed to manufacture a new component.
Lawler Gear offers gear reverse engineering services for customers who need to replace obsolete gears or components without existing drawings. Combined with decades of manufacturing experience, this capability allows the team to help customers restore equipment that might otherwise remain out of service.
Taking the time to understand the application before production begins creates a stronger foundation for the entire project. It also gives customers confidence that the finished gear is being manufactured to solve the right problem—not simply duplicate an existing part.
The Custom Gear Manufacturing Process: The Steps From Design to Production
Once the project requirements have been established, the focus shifts from planning to production. This is where engineering expertise and precision manufacturing come together to transform a concept, drawing, or sample gear into a finished component.
Although every project follows its own path, the overall process is designed to ensure the final product meets the customer’s specifications while delivering dependable performance in the field.
1. Engineering the Right Solution
Before manufacturing begins, engineers review the project requirements and determine the best approach for producing the gear. This includes evaluating material selection, dimensions, tolerances, and the type of gear that best suits the application.
Lawler Gear manufactures a wide variety of gearing solutions—including spur gears or helical gears, bevel gears, worm gears, keyways, splines, sprockets, and gear racks—allowing them to support everything from one-time replacement parts to ongoing production runs.
The goal isn’t simply to produce a gear that fits; it’s to manufacture one that performs reliably under the operating conditions it was designed for.

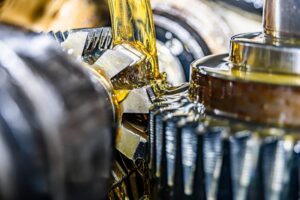

2. Precision Gear-Cutting and Machining
With the design finalized, production begins using the manufacturing methods best suited for the project. Depending on the application, custom gear machining may involve a combination of processes that shape, refine, and finish the gear to meet its required specifications.
Common manufacturing operations include:
- Turning and milling to prepare the gear blank
- Custom gear cutting to create the required tooth profile
- Shaping or grinding to achieve precise dimensions and tolerances
- Additional finishing operations as needed for the application
Rather than following a one-size-fits-all approach, each manufacturing method is selected based on the gear’s design and intended operating conditions. This flexibility is one of the biggest advantages of industrial gear manufacturing, allowing manufacturers to produce custom gears that deliver reliable performance in demanding applications.
3. Finishing the Gear
After the gear teeth have been cut, the component may require additional operations to achieve the specified hardness, surface finish, dimensional accuracy, and wear resistance. The exact finishing process depends on the gear material, accuracy requirements, operating environment, and expected loads.
Finishing operations may include:
- Deburring and edge finishing to remove sharp edges or small burrs left by machining
- Heat treatment to increase hardness, strength, and resistance to tooth wear
- Finish grinding to correct minor distortion from heat treatment and bring the tooth profile, lead, and other critical dimensions within tolerance
- Honing or lapping to improve tooth contact and create a smoother mating surface
- Surface treatments or protective coatings when the gear will operate in corrosive, high-wear, or otherwise demanding conditions
- Cleaning and preparation for inspection to ensure surfaces and critical features can be accurately evaluated
These operations are not required for every custom gear. For example, a lower-speed gear operating under moderate loads may not need the same surface hardness or tooth-finish requirements as a hardened gear used in a high-load, high-speed application.
The finishing stage can have a direct effect on how the gear performs once installed. Proper hardness helps resist wear and deformation, while accurate tooth geometry and a controlled surface finish promote better tooth contact. Together, these characteristics can help reduce localized stress, excessive heat, vibration, noise, and premature wear.
Once finishing is complete, the gear moves to final inspection, where critical dimensions and features are checked against the project specifications.
How Quality Control Supports Precision Gearing
Manufacturing a gear is only part of the process. Before it’s delivered, it must be inspected to ensure it meets the required dimensions, tolerances, and quality standards.
At Lawler Gear, quality inspection is supported by advanced equipment and proven inspection methods that help verify every gear performs as intended. Before a gear leaves the facility, the team confirms critical characteristics, including:
- Gear tooth profile and geometry
- Lead accuracy
- Critical dimensions and tolerances
- Compliance with applicable AGMA, ISO, and DIN standards
To support these inspections, Lawler Gear utilizes precision tools, including a Zeiss Contura G2 coordinate measuring machine (CMM) and other specialized gear inspection equipment. This thorough quality control process gives customers confidence that the finished gear will fit properly, operate efficiently, and deliver reliable long-term performance.
What to Expect When Working with a Custom Gear Manufacturer
Ordering a custom gear shouldn’t feel like navigating a complicated process alone. An experienced manufacturing partner helps simplify the project with expert guidance from initial conversation to final delivery.
A Collaborative Approach
Every project begins with understanding the customer’s goals. Whether you’re replacing an obsolete component, recreating a damaged gear, or developing a new design, Lawler Gear works closely with you to understand the application’s unique requirements before manufacturing begins.
That collaborative approach continues throughout the project, ensuring questions are answered, expectations remain clear, and the finished product aligns with your operational needs.
Experience You Can Count On
Since 1977, Lawler Gear has specialized in precision gear manufacturing for customers across a wide range of industries. As a second-generation, family-owned company, we’ve built our reputation on quality craftsmanship, dependable service, and long-term customer relationships.
Today, the company operates from a 31,000-square-foot manufacturing facility and employs experienced machinists who average more than two decades with the company. That depth of knowledge allows Lawler Gear to confidently manufacture everything from individual replacement gears to complex production orders while maintaining consistent quality.
Partner With Lawler Gear for Your Next Custom Gear Project
Whether you’re replacing an obsolete component, improving the performance of existing equipment, or designing a new machine, custom gear manufacturing is about much more than producing a part that fits; it’s a collaborative process that combines engineering expertise, precision gearing, advanced manufacturing, and thorough quality inspection to deliver a solution built specifically for your application.
With more than 45 years of experience, comprehensive manufacturing capabilities, and a commitment to quality, Lawler Gear has the knowledge and resources to support projects of all sizes—from one-off replacement gears to ongoing production runs.
If you’re looking for a reliable partner for your next custom gear manufacturing project, contact Lawler Gear today. Our team is ready to answer your questions, discuss your application, and help you find the right gearing solution for your equipment.
