When an industrial gearbox starts making unusual noise, running hotter than normal, or showing signs of wear, the first question is often: Can a gearbox be repaired, or does it need to be replaced?
In many cases, a gearbox can be rebuilt and returned to service without replacing the entire unit—which is good news, because full replacement can be a lot more costly. For older equipment, custom machinery, or gearboxes with hard-to-find replacement parts, rebuilding or repairing your gearbox may be both the most practical and cost-effective option.
At Lawler Gear, gearbox repair goes beyond replacing a few worn components. The process combines advanced inspections, reverse engineering, custom gear manufacturing, precision machining, and thorough testing to restore performance and reliability. By keeping these capabilities under one roof, Lawler can diagnose the cause of a gearbox failure, manufacture the replacement components, and complete the repair. The finished gearbox can then be tested before it goes back into operation.
What Is Custom Gearbox Repair?
Custom gearbox repair is the process of rebuilding a gearbox based on its specific condition and application requirements rather than simply replacing it with a new unit.
This approach is often used when:
- OEM replacement parts are unavailable
- The gearbox is part of older or legacy equipment
- The application requires specialized gearing
- A replacement gearbox would require costly modifications
- Downtime makes a complete replacement impractical
Unlike a standard repair that relies solely on off-the-shelf components, custom gearbox repair allows damaged gears, shafts, keyways, splines, and other critical parts to be repaired or manufactured to meet the needs of the equipment.
For many facilities, that means extending the life of your gearbox while avoiding the cost and disruption of a full replacement.
How Does the Gearbox Repair and Rebuilding Process Work?
While every gearbox presents its own unique challenges, the rebuilding process generally follows the same path from inspection to final testing.
| Stage | Purpose |
| Inspection & Diagnosis | Determine what failed and why |
| Disassembly & Cleaning | Expose wear, signs of gearbox damage, and contamination |
| Repair & Manufacturing | Restore or replace damaged components |
| Precision Inspection | Verify dimensions and tolerances |
| Reassembly & Testing | Confirm proper operation before returning to service |
Each step in the gearbox rebuilding process plays an important role in ensuring your equipment performs correctly and reliably once it’s back in operation.
1. Inspecting the Gearbox & Identifying the Issue
Every rebuild starts with a thorough inspection.
The gearbox is disassembled so technicians can evaluate gears, shafts, bearings, pinions, seals, and other main components. Obvious damage is documented, but the inspection process goes deeper than simply finding the broken part. The goal is to determine why the failure occurred in the first place.

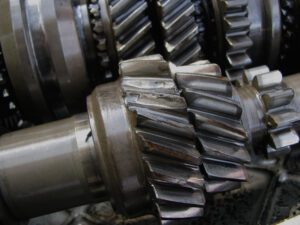

For example, a damaged gear tooth may be the symptom, but not the root cause. Improper alignment, lubrication issues, excessive loading, or bearing failure may have contributed to the problem.
By identifying the underlying cause, the repair team can recommend solutions that help prevent the same failure from happening again.

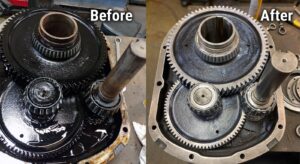

2. Disassembly, Cleaning, and Component Evaluation
Once the gearbox has been evaluated, technicians completely disassemble the unit and clean the components.
Cleaning is more important than many people realize. Oil residue, contamination, and debris can hide cracks, wear patterns, and other issues that affect gearbox performance. A clean component provides a much more accurate picture of its condition than a dirty one.
During this stage, components are categorized as:
- Suitable for reuse
- Repairable
- Requires a replacement
This evaluation helps focus the rebuild on the gears and components that actually need attention rather than replacing every part regardless of its condition.
For customers, this often means a more efficient repair process and better use of maintenance dollars.
3. Manufacturing Replacement Gears and Components
This is where Lawler’s manufacturing capabilities come in.
Many gearbox repair shops can replace standard bearings or seals. The challenge comes when a crucial part is obsolete, custom-made, or no longer available from the original manufacturer.
Lawler can manufacture replacement components in-house using its extensive gear manufacturing and machining capabilities. These services include:
- Gear cutting and shaping
- CNC turning and milling
- Gear grinding
- Broaching and Keyseating
- Keyway and spline machining
- Custom gearbox adapters and transition bases
Rather than searching for a replacement part that may no longer exist, technicians can manufacture a new component designed to match the original application requirements. This capability can significantly reduce downtime for facilities operating older equipment or specialized machinery.
4. Reverse Engineering When Drawings Don’t Exist
One of the biggest challenges in gearbox repair is dealing with missing documentation.
Many industrial facilities operate equipment that has been running for decades. Drawings may have been lost, manufacturers may no longer exist, and replacement components may be impossible to source.
That’s where reverse engineering services come in.
Lawler can analyze an existing gear or component—even if it’s worn, damaged, or partially missing—and recreate it using advanced inspection equipment and specialized software. Technicians capture critical information such as:
- Tooth geometry
- Pitch diameter
- Pressure angles
- Alignment and spacing
- Overall gear geometry
That information is then used to manufacture a replacement component that matches the original design intent.
For many operations, gear reverse engineering turns what appears to be an impossible repair into a practical solution.
5. Verifying Accuracy with Advanced Gear Inspection
Manufacturing a replacement gear is only part of the job. The next step is making sure it meets the right specifications.
Lawler uses a Zeiss Contura G2 CMM (Coordinate Measuring Machine) with GearPro software to inspect gears throughout the manufacturing process. Rather than relying solely on manual measurements, the system captures thousands of data points and creates a detailed map of the gear’s geometry.
The inspection process verifies crucial features like:
- Tooth profile
- Pitch accuracy
- Lead and alignment
- Overall geometry
- Required tolerances
Nearly every gear that passes through Lawler’s facility undergoes CMM inspection before delivery. This helps ensure replacement components fit properly, operate smoothly, and perform as intended in demanding industrial applications.
6. Reassembly, Testing, and Return to Service
After components have been repaired, manufactured, and inspected, the gearbox is reassembled.
New bearings, seals, and other replacement components are installed as needed. Gear clearances are checked, lubrication is addressed, and the rebuilt unit undergoes testing before it leaves the shop.
Typical quality control checks may include:
- Gear clearance verification
- No-load spin testing
- Noise evaluation
- Vibration evaluation
- Operational testing

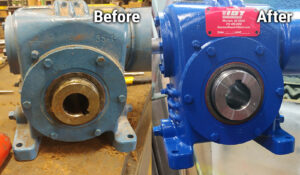

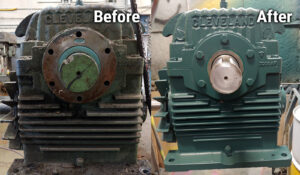

Rebuilt units are also cleaned, painted, and prepared for their return to service as a part of the rebuilding process. These final checks help confirm that the gearbox is ready to perform in the field.
When Should You Consider Custom Gearbox Repair?
Not every gearbox requires replacement when problems arise.
A professional evaluation may be worth your time if you notice:
- Excessive noise or vibration
- Increased operating temperatures
- Gear tooth damage
- Bearing failures
- Lubrication issues
- Recurring gearbox problems
- Difficulty finding replacement parts
In many cases, addressing these issues early can prevent more extensive damage and reduce unplanned downtime.
Why Choose Lawler Gear for Custom Gearbox Repair?
What sets Lawler apart is the ability to support the entire repair process from start to finish.
Instead of sending a gearbox to one company for inspection, another for machining, and a third for gear manufacturing, customers gain access to a single team that can:
- Diagnose gearbox failures
- Rebuild gearboxes
- Manufacture replacement gears
- Reverse engineer obsolete components
- Machine custom shafts, keyways, and splines
- Perform advanced CMM gear inspection
- Test rebuilt units before delivery
These integrated capabilities help streamline repairs, improve quality control, and provide practical solutions when standard replacement parts aren’t available.
Get Expert Help with Gearbox Repair
A damaged gearbox doesn’t automatically mean a complete replacement is necessary. With the right expertise, many gearboxes can be rebuilt, repaired, and returned to reliable service.
Whether you’re dealing with worn gearing, obsolete components, or a gearbox failure that requires custom manufacturing, Lawler Gear has the equipment, inspection capabilities, and technical expertise to help.
Contact Lawler Gear today to discuss your gearbox repair needs or request a quote for your next rebuilding project.
