Gearboxes are essential mechanical systems used across countless industrial applications, from manufacturing and automotive equipment to heavy machinery. These precision-engineered devices efficiently transfer power while providing the speed and torque adjustments vital to modern mechanical operations.
While gearboxes come in various configurations and designs, ranging from simple to highly complex, they all share four fundamental components that work harmoniously to deliver reliable performance. To succeed, manufacturing, maintenance, and engineering professionals must understand these components.
Let’s explore the core components of gearboxes, their functions, and how they contribute to a gearbox’s overall operation.
Understanding the Basic Function of a Gearbox
Before diving into specific components, it’s important to understand a gearbox’s primary purpose. A gearbox is a device that uses gears and gear trains to provide speed and torque conversions from a rotating power source to another device.
In industrial applications, gearboxes perform several critical functions, including:
- Converting input speeds to appropriate output speeds
- Increasing torque for applications requiring greater force
- Altering the direction of mechanical power transmission
- Splitting power between multiple outputs
The four main gearbox components work together to accomplish these functions with precision and reliability. Let’s examine each in detail.
Component 1: Gear Sets
Gears are undoubtedly the most recognizable and fundamental components of any gearbox system. These toothed mechanical parts mesh together to transmit rotational force from one shaft to another. The specific arrangement and design of gear sets determine the gearbox’s performance characteristics.
Types of Gears Commonly Found in Industrial Gearboxes
Different applications require different industrial gear types, each with specific advantages:
Spur Gears: These feature straight teeth arranged parallel to the gear axis. They are commonly used in applications requiring simple, direct drives and are valued for their efficiency and straightforward design. However, due to how their teeth engage, they can generate more noise during operation.

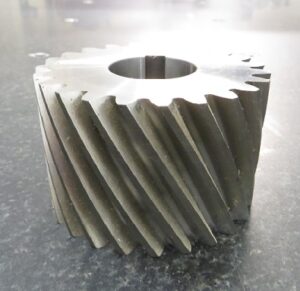

Helical Gears: With teeth cut at an angle to the gear face, helical gears provide smoother, quieter operation than spur gears. This angled design allows for gradual engagement, reducing impact forces and vibration. They’re frequently used in automotive transmissions and industrial equipment where noise reduction is important.
Bevel Gears: These conical-shaped gears enable power transmission between non-parallel shafts, typically at 90-degree angles. They’re essential in applications requiring changes in the direction of power flow, such as differential drives in vehicles or corner drives in conveyors.
Worm Gears: Consisting of a screw-like gear (the worm) meshing with a wheel, worm gear sets excel at providing high reduction ratios in compact spaces. They also offer self-locking capabilities, preventing backdriving in applications like lifting equipment.
The selection of appropriate gear types and configurations significantly impacts a gearbox’s performance metrics, including efficiency and power loss, load-carrying capacity, operating noise levels, expected service life, and maintenance requirements.
Component 2: Shafts
Shafts are cylindrical components that support rotating elements and transmit power through the gearbox system. A typical industrial gearbox contains at least two shafts: the input shaft, which receives power from the driving source (typically a motor or engine), and the output shaft, which delivers the converted power to the driven equipment.
Shafts must be engineered to withstand various stresses, including twisting forces created during power transmission and forces perpendicular to the shaft axis.
High-performance industrial gearboxes utilize shafts manufactured from alloy steels, which undergo precise heat treatments to ensure optimal strength-to-weight ratios and fatigue resistance. Proper shaft design, including appropriate diameter transitions, keyways, and splines, is crucial for reliable operation under demanding conditions.
Shaft Alignment Considerations
Proper shaft alignment is critical for gearbox longevity. Misalignment can lead to:
- Premature bearing failure
- Excessive vibration
- Increased wear on gears and seals
- Reduced efficiency
- Higher operating temperatures
Modern manufacturing processes and precision machining techniques allow for tight tolerances in shaft production, helping ensure smooth and reliable gearbox operation throughout its service life.
Component 3: Bearings
Bearings are essential components that support shafts, reduce friction, and maintain proper alignment within the gearbox. These precision elements allow smooth rotation while handling radial and axial loads generated during operation.
Many types of bearings are commonly used in gearboxes. These include:
- Ball Bearings: Versatile and widely used, ball bearings handle moderate loads in multiple directions. Their design incorporates hardened steel balls between inner and outer races, providing relatively low friction and good all-around performance.
- Roller Bearings: Available in cylindrical, tapered, spherical, and needle configurations, roller bearings offer greater load capacity than similarly sized ball bearings. They’re particularly valuable in applications with heavy radial loads.
- Tapered Roller Bearings: These specialized bearings excel at handling combined loads (both radial and axial) and are frequently used at input and output shaft locations in industrial gearboxes.
- Thrust Bearings: Designed specifically to handle axial loads, thrust bearings prevent shaft movement along their axis and are crucial in applications where axial forces are significant.
Bearing Selection Considerations
Selecting appropriate bearings for a gearbox application involves evaluating several factors:
- Expected load profiles
- Operating speeds
- Temperature conditions
- Space constraints
- Lubrication requirements
- Desired service life
- Cost considerations
Premium industrial gearboxes feature high-quality bearings with appropriate specifications to ensure reliable operation under specific application conditions. Modern bearing technologies, including advanced materials and surface treatments, have significantly improved durability and reduced maintenance requirements.
Component 4: Housing and Lubrication System
The housing is the external structure that contains and protects all internal components while providing mounting points for installation. Though often overlooked, the housing plays a critical role in gearbox functionality, including:
- Maintaining precise component alignment
- Providing structural rigidity
- Dissipating heat generated during operation
- Keeping contaminants out and lubricants in
- Reducing noise transmission to the surrounding environment
Gearbox housings are typically manufactured from cast iron, cast steel, or aluminum alloys. Cast iron offers excellent vibration damping, good thermal stability, and cost-effectiveness for many applications. Cast steel provides higher strength-to-weight ratios for applications with severe loading or space constraints. Aluminum alloys are used when weight reduction is critical, such as in mobile equipment or high-speed applications where reduced inertia is beneficial.
The specific design of a gearbox housing depends on its application, with considerations for mounting orientation, accessibility for maintenance, cooling requirements, and environmental exposure.
The Critical Role of Lubrication Systems
The lubrication system, integrated with the housing, is vital for reliable gearbox operation. Proper lubrication reduces friction between moving components, dissipates heat generated during operation, and prevents corrosion and wear. It also helps remove contaminants and dampens noise and vibration.
Selecting the appropriate lubrication system impacts gearbox efficiency, operating temperature, and overall service life.
How These Gearbox Components Work Together
A well-designed gearbox’s performance requires the interaction of all four main components. The gear sets provide the mechanical advantage and directional changes, while shafts transfer power through the system. Bearings support the rotating elements with minimal friction, and the housing, paired with its lubrication system, protects the assembly while ensuring optimal operating conditions.
This integrated system approach allows industrial gearboxes to perform crucial functions in demanding environments, from continuous production lines to intermittent heavy-duty applications.
The four main components of a gearbox—gear sets, shafts, bearings, and housing with a lubrication system—form a sophisticated mechanical system fundamental to countless industrial applications. Understanding these components and their functions provides valuable insights for engineers and maintenance professionals involved in specifying, operating, or maintaining industrial equipment.
