Gears are everywhere, from cars and machinery to everyday appliances, helping things move and work smoothly. Behind the scenes, manufacturing these essential components requires skill, precision, and the right techniques.
If you’re new to gear manufacturing, two key processes you’ll need to understand are gear turning and gear milling. These methods shape gears to exact specifications, ensuring they perform reliably in all kinds of machines.
This guide breaks down the gear turning and gear milling processes. If you’re a manufacturing professional in the Kansas City and Lee’s Summit areas, learning these techniques will help you understand what goes into custom gear turning and milling.
What Is Gear Turning?
Gear turning is the starting point of the gear-making process, shaping raw material into a precise gear blank ready for tooth cutting. This process lays the foundation for all further machining steps.
The gear turning process includes the following:
- Preparing and Mounting the Gear Blank: The process begins with selecting the right material—such as steel, brass, or engineered plastics—based on the gear’s intended use. The material is cut slightly oversized to allow for finishing, then securely mounted on the lathe to ensure stability during machining.
- Facing the Ends: The first machining step, also known as facing, creates smooth, flat surfaces on both ends of the blank. This ensures proper alignment when the gear is assembled into a mechanical system.
- Shaping the Outer Diameter: The blank’s outer diameter is turned to precise specifications, determining how the gear will mesh with others. This involves rough turning to remove excess material, followed by finish turning to achieve exact dimensions and smooth surfaces.
- Boring the Center Hole: Many gears need a precisely sized hole in the center for mounting. Boring creates this hole while maintaining accuracy and a smooth finish. Additional features like keyways and splines may be added to ensure a secure fit on a shaft.
- Additional Machining: Depending on the gear’s design, extra features such as hubs or grooves may be added to improve performance, ensure proper fit, and eliminate sharp edges.
Gear Turning Precision and Quality Control
The quality of the turning process directly impacts the gear’s final performance. Accuracy in dimensions, surface finish, and geometric tolerances ensures the gear functions properly. Surface finish quality, in particular, plays a crucial role in gear performance since many surfaces will become contact areas during operation.
Additionally, it’s important to keep the material in good condition throughout the turning process to avoid issues like overheating or hardening, which can affect the gear’s strength and performance. This means using the right cutting speeds, tools, and cooling methods for the specific material being machined.
Manufacturers should use advanced measuring tools to ensure that each gear meets the required dimensions and specifications. In high-volume production, real-time monitoring systems can even make small adjustments automatically to keep the process precise and consistent.
What Is Gear Milling?

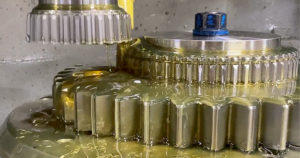

Once a gear blank is ready, the next step is milling the teeth, or turning a smooth cylinder into a working gear that transmits motion and power. Gear milling removes material to create the tooth shape, ensuring it meshes with other gears.
Gear milling methods can include:
- Form Milling: This method uses a specially shaped cutter to carve out each tooth one at a time. The gear blank rotates after each cut to ensure even spacing. Due to its flexibility, form milling is ideal for small-batch production but can be slower for large-scale manufacturing.
- InvoMilling: This method is a more modern approach that uses standard cutting tools and advanced software to create precise gear teeth without requiring specialized cutters. It’s highly adaptable, allowing manufacturers to quickly switch between different gear designs while maintaining accuracy.
- Gashing: This method is a rough-cutting technique used to remove large amounts of material quickly before finishing. This is especially useful for larger gears, reducing the wear on more precise cutting tools and speeding up the process.
Key Factors in Gear Milling
Successful gear milling depends heavily on proper tool selection and management. Cutting tools with specialized coatings last longer and improve precision. Software also helps control cutting angles and feed rates for smooth operation.
Regarding quality control, measuring tools check tooth shape, spacing, and alignment to ensure the gear runs smoothly without vibration or excess wear. Advanced inspection machines provide detailed reports to verify accuracy.
By using the right milling techniques and quality checks, gear manufacturers can produce durable, high-performing gears suited for various applications.
Integrating Gear Turning and Milling for a More Efficient Approach
Advancements in manufacturing have led to machines that combine turning and milling into one setup, streamlining gear production and improving precision.
By performing both operations in a single machine, manufacturers reduce errors caused by repositioning parts between different machines. This ensures better alignment, improves accuracy, and speeds up production by eliminating extra steps. Automation features further enhance efficiency by reducing manual labor and keeping processes consistent.
Modern Technology Applications for Gear Turning and Milling
Leading machine tool manufacturers have developed specialized solutions for integrated gear manufacturing. These include:
- Turn-Mill Centers: These machines handle both turning and milling, allowing gears to be made from raw materials in one seamless process.
- 5-Axis Machining: This offers greater flexibility to create complex gear types and shapes, including spiral bevel gears.
- In-Process Measurement: Built-in probes check dimensions during machining, making automatic adjustments to maintain quality without stopping production.
With these innovations, manufacturers can produce high-quality gears faster, with fewer resources, and without specialized gear-cutting machines.
Lawler Gear: Your Premier Custom Gear Manufacturing Solution
Lawler Gear is a trusted name in custom gear manufacturing, serving businesses in Kansas City, Lee’s Summit, and across a five-state region. With decades of expertise and cutting-edge technology, we specialize in high-quality production, making us your go-to choice for precision-engineered solutions.
We focus on specialized gear production, ensuring exception quality control. This focus makes us an ideal partner for gear manufacturing in Kansas City and Lee’s Summit, with solutions tailored to you rather than mass-produced products. Contact us today to learn more.
