A gear rack is a key component in many mechanical systems, especially those that require smooth and accurate linear motion. If you’ve ever seen a machine that turns rotary motion into straight-line movement, chances are it uses a rack and pinion system.
Below, we explain what a gear rack is, how it works, the different types available, and why custom solutions are often the best choice for industrial use.
Gear Rack Definition and Function
A gear rack is a straight or slightly curved bar that has teeth cut along one side. These teeth mesh with a pinion gear, a round gear with teeth that turns and moves along the rack. This setup converts rotary motion (from the turning pinion) into linear motion (as the rack moves). Gear racks are widely used in machinery that needs precise and powerful movement in a straight line.
Gear racks are part of what’s known as a rack and pinion system. This simple but highly effective setup is found in everything from CNC machines to elevator systems and industrial automation equipment.
Types of Gear Racks
Choosing the right gear rack depends on the application. Here are the main types commonly used in industrial settings:
Straight (Spur) Gear Racks

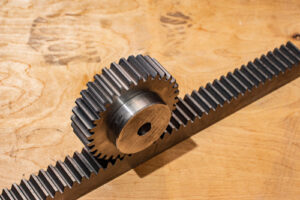

This is the most basic type of gear rack, with straight teeth cut parallel to the rack’s axis. Straight gear racks are known for their simplicity, ease of manufacturing, and solid performance under moderate load conditions. They’re often used in machinery, lifting systems, and conveyor mechanisms.
Helical Gear Racks

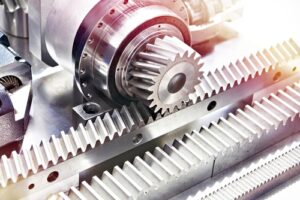

Helical gear racks have teeth that are cut at an angle (helix) rather than straight across. This angled design allows for smoother and quieter operation, especially at higher speeds. Helical racks also distribute load more evenly across the teeth, which helps reduce wear and improve lifespan.
These are ideal for applications that demand reduced noise and higher strength, such as in precision machining and automated robotics.
Custom Gear Racks
In many cases, off-the-shelf gear racks don’t meet specific performance needs. That’s where custom gear rack manufacturers like Lawler Gear come in. We offer precision gear rack machining tailored to your application’s load, speed, materials, and environment.
From commercial-grade rack and pinion systems to custom-cut racks for unique mechanical challenges, our team works closely with engineers and maintenance crews to develop reliable, efficient gear solutions.
Common Applications of Gear Racks
Gear racks are used across various industries, particularly in equipment that requires reliable and precise linear movement. Some typical gear rack applications include:
- CNC Machines for tool carriage movement
- Elevators and Lifts to move platforms vertically
- Automated Assembly Lines for moving parts or tools into place
- Steering Systems (Rack and Pinion) are used in many vehicle types
- Material Handling Equipment such as cranes and hoists
- Industrial Printing Presses for moving print heads or rollers
Because of their strength and versatility, industrial gear racks are essential in manufacturing, aerospace, transportation, and heavy equipment industries.
Materials and Manufacturing of Gear Racks
Gear racks are made from various materials depending on the load, environment, and performance requirements. Common materials include:
- Carbon Steel for high strength and durability
- Alloy Steel for enhanced hardness and wear resistance
- Stainless Steel for corrosion resistance in harsh environments
- Plastic or Nylon for lighter-duty or quieter applications
Gear Rack vs. Pinion: Understanding the Relationship
In a rack and pinion system, the pinion is the gear that rotates and drives movement along the rack. The rack stays straight, while the pinion turns to move the rack in one direction or another.
This relationship is essential to converting circular motion into linear motion. If the pinion turns clockwise, the rack moves one way. Turn it counterclockwise, and the rack moves the opposite way.
A simple way to think about it: the pinion is like a steering wheel, and the rack is the road. Without one, the other doesn’t function. Both must be carefully selected and aligned to ensure smooth operation.
Gear Rack Failure: Causes and Prevention
Even the strongest gear racks can wear out over time if they’re not properly maintained. Common causes of gear rack failure include:
- Tooth wear or pitting
- Misalignment with the pinion gear
- Poor lubrication
- Excessive loads or vibrations.
Proper maintenance, high-quality materials, and correct installation can significantly extend the lifespan of your gear racks.
Choosing the Right Gear Rack for Your Application
Not all gear racks are created equal. When selecting or designing a gear rack, it’s important to consider:
- Load requirements
- Speed and duty cycle
- Operating environment (temperature, humidity, chemicals)
- Noise levels
- Material compatibility
- Mounting and alignment needs
Working with a custom gear rack manufacturer ensures your component meets these unique demands. Our engineers at Lawler Gear will help you select the best gear rack based on technical specs and performance goals.
Why Choose Lawler Gear for Gear Racks and Gearbox Solutions
With decades of experience, Lawler Gear is a trusted name in custom gear manufacturing, innovative gearbox solutions, and precision inspection. We provide custom gear services in Lee’s Summit and Kansas City for those who need:
- Custom gear manufacturing
- Rack and pinion system design
- Custom gear grinding
- Gearbox rebuilding
- High-accuracy inspection and diagnostics
Whether you’re building a new system or restoring an existing one, our team is here to help. Every gear rack we produce is built to last, engineered for strength, and inspected for total reliability.
A gear rack might seem like a small part, but it plays a big role in keeping machines running smoothly. From converting motion to handling heavy loads, gear racks are essential in a wide range of industrial systems.
At Lawler Gear, we understand that no two applications are the same. That’s why we offer custom solutions, not one-size-fits-all components. If you’re looking for a reliable gear rack manufacturer with deep experience in the field, look no further.
Ready to get started? Contact Lawler Gear today to request a quote or speak with one of our custom gear experts. Let us help you move forward precisely.
